Derivation of softmax function from sigmoid function of logistic regression

[tamalmallick]

Hello Mentors,

I have a question regarding the derivation of the softmax function from the sigmoid.

The softmax function is a generalized form of the sigmoid function. I was curious to know the derivation.

I have also checked Raymond’s explanation in the topic below -

Derivation from softmax regression to logistic regression

In video Professor Andrew Ng said, The softmax regression algorithm is a generalization of logistic regression. How can the logistic regression model with sigmoid function be derived from Softmax regression model? Thanks and best Regards Liyu

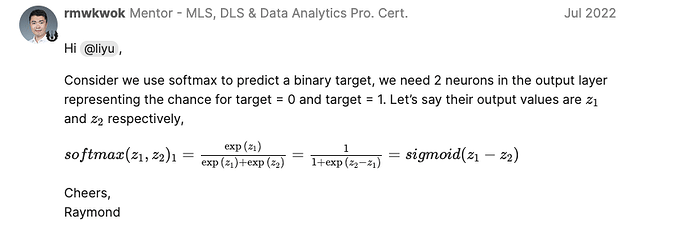

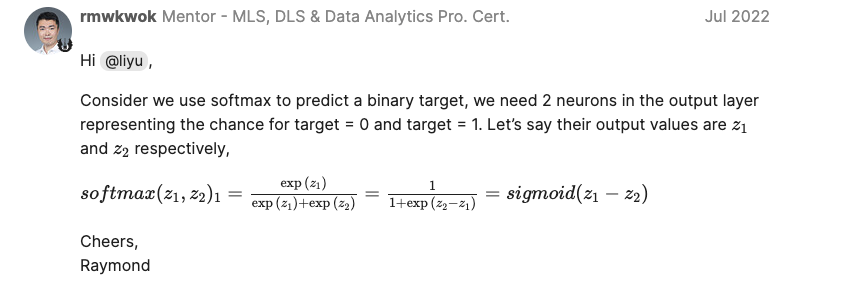

I wondered how sigmoid(z1-z2) is equivalent to sigmoid(z1)?

It would be great if someone could explain the derivation of the softmax function from the Sigmoid function.

Thanks
Tamal

[rmwkwok]

My response here:

Derivation from softmax regression to logistic regression

Hello, @tamalmallick, Let’s consider two neural networks sharing the same base network but different heads which are, respectively, softmax layer and sigmoid layer. [image] My arguments of sigmoid(z_1-z_2) and sigmoid(z) being equivalent are that - z_1 is a linear combination of a_1, a_2, ..., a_n, and so is z_2 \implies z_1 - z_2 is a linear combination of a_1, a_2, ..., a_n Because z is also a linear combination of a_1, a_2, ..., a_n, z and z_1 - z_2 are equivalent. Cheers, Raymond

Let’s see if it makes sense to everyone

Cheers,
Raymond

[TMosh]

I got lost in the algebra when I tried to write out a proof.

The other thread doesn’t work out the derivation of your formula either.

It would be really informative to see it worked out.

[conscell]

Hi @tamalmallick,

For 2 classes the softmax is identical to the sigmoid:

\begin{align} {\bf z} = [z, 0] \\ {\rm Softmax}({\bf z})_1 &= {e^z \over e^z + e^0} = {e^z \over e^z + 1} = {1 \over 1 + e^{-z}} = \sigma(z) \\ {\rm Softmax}({\bf z})_2 &= {e^0 \over e^z + e^0} = {1 \over e^z + 1} = 1 - \sigma(z) \end{align}

[tamalmallick]

Hi @consell,

Thanks for this, but I have a follow-up question. You mentioned z = [z,0]. I wondered how z becomes 0 in 2 classes when z is a linear expression z=W.X+b?

[TMosh]

That seems to be a specific example where it is assumed that the output of the first unit is ‘z’, and the output of the second unit is zero.

I’d like to see a derivation where z1 and z2 are both any real numbers.

[conscell]

@tamalmallick,

The softmax function is shift invariant for any constant c:

\begin{align} {\rm Softmax}([z_1, z_2]) &= \left[ {e^{z_1} \over e^{z_1} + e^{z_2}}, {e^{z_2} \over e^{z_1} + e^{z_2}} \right] \\ &= \left[ {e^{z_1} e^{-c} \over e^{-c} (e^{z_1} + e^{z_2})}, {e^{z_2} e^{-c} \over e^{-c} (e^{z_1} + e^{z_2})} \right] \\ &= \left[ {e^{z_1 -c} \over e^{z_1 - c} + e^{z_2 - c}}, {e^{z_2 - c} \over e^{z_1 - c} + e^{z_2 - c}} \right] \\ &= {\rm Softmax}([z_1 - c, z_2 -c]). \end{align}

(This fact is used to ensure numerical stability by subtracting the maximum logit from all logits)
So, for binary classification, we can shift the logits by setting c = z_2:

{\rm Softmax}([z_1, z_2]) = {\rm Softmax}([z_1 - z_2, 0]).

Let z = z_1 - z_2. Then:

\begin{align} {\rm Softmax}([z_1, z_2]) &= {\rm Softmax}([z, 0]) \\ &= [\sigma(z), 1 - \sigma(z)] \\ &= [\sigma(z_1 - z_2), 1 - \sigma(z_1 - z_2)], \end{align}

Which is similar to the result presented by Raymond @rmwkwok, which shows that binary softmax is equivalent to sigmoid over the logit difference.
I am not sure what exactly you are trying to derive, because the softmax function converts logits z_i into probability over classes, whereas the sigmoid function maps a single logit to a probability between 0 and 1. In particular, softmax is used when you have multiple mutually exclusive classes, and it ensures that the outputs sum to 1 across all classes. Sigmoid, on the other hand, is used when you’re modeling the probability of a single class or multiple independent classes, and does not enforce that the outputs sum to 1.

[TMosh]

“Math processing errors”.

[conscell]

“Math processing errors”.

Please try to reload the page, or try another browser. This error sometimes occurs on my iPhone when connection is slow.

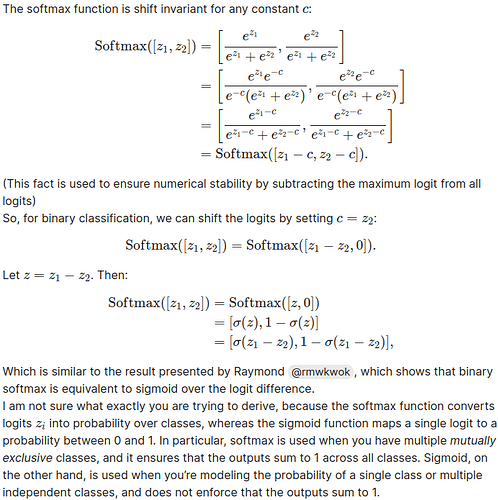

Screenshot

[TMosh]

I’m on Firefox on Windows 10. The “math processing error” seems to have resolved itself.
