Optional lab markdown rendering issue in a local lab

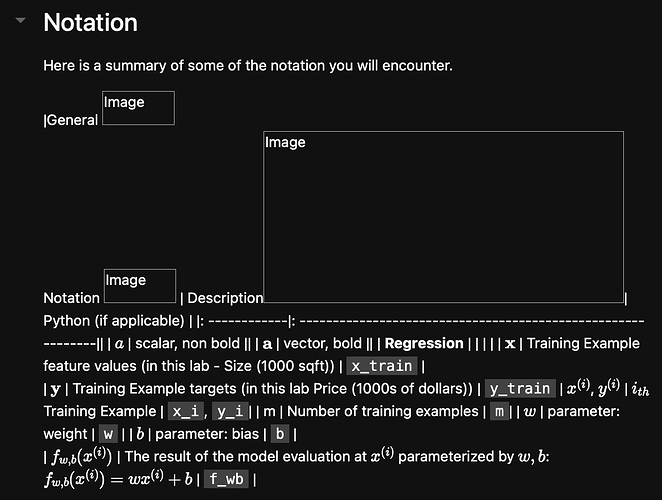

Hi! I am seeing a table broken like this in my local lab for C1_W1_Lab02_Model_Representation_Soln:

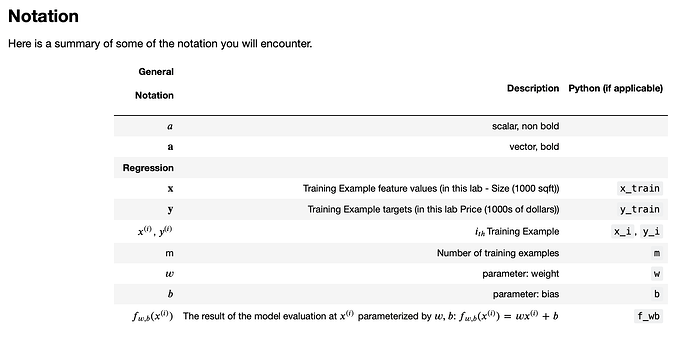

which is nicely rendered in the coursera lab:

My guess is I have to install a library that renders markdown in a certain way, but I don’t know how to find out its name.
The original markdown:

## Notation
Here is a summary of some of the notation you will encounter.

|General <img width=70/> <br />  Notation  <img width=70/> | Description<img width=350/>| Python (if applicable) |
|: ------------|: ------------------------------------------------------------||
| $a$ | scalar, non bold                                                      ||
| $\mathbf{a}$ | vector, bold                                                      ||
| **Regression** |         |    |     |
|  $\mathbf{x}$ | Training Example feature values (in this lab - Size (1000 sqft))  | `x_train` |
|  $\mathbf{y}$  | Training Example  targets (in this lab Price (1000s of dollars))  | `y_train`
|  $x^{(i)}$, $y^{(i)}$ | $i_{th}$Training Example | `x_i`, `y_i`|
| m | Number of training examples | `m`|
|  $w$  |  parameter: weight                                 | `w`    |
|  $b$           |  parameter: bias                                           | `b`    |
| $f_{w,b}(x^{(i)})$ | The result of the model evaluation at $x^{(i)}$ parameterized by $w,b$: $f_{w,b}(x^{(i)}) = wx^{(i)}+b$  | `f_wb` |

Can I have some help on this? My lab version is Version 4.0.5

Also, I’d love to know how I can find if I have any missing python libraries to install when I download notebook files/folders like this one to run locally. For this one I downloaded the entire folder including images, other notebook lab files, some python files.

What browser are you using?

There is an FAQ article in the MLS Resources section that has instructions for downloading the lab materials.

Hey @Tigre,

This is cousera’s jupyter version for that lab:


The easiest way is to run the code and as soon as there is a missing library, you will get an error. Another way is to run through the notebook on Cousera, and print all the used packages, and compare the printed list to your list of installed packages.

Good luck!
Raymond

Thank you for your response. I am using Safari. I’d like to check the FAQ. Where can I find the MLS Resources section?

Thank you. I guess my version being more recent, the markdown rules might have been changed. I could get it looking similar by updating the markdown as following:

## Notation
Here is a summary of some of the notation you will encounter.

| General<br/><br/>Notation | <br/><br/>Description | <br/><br/>Python (if applicable) |
| -: | -: | -: |
| $a$ | scalar, non bold ||
| $\mathbf{a}$ | vector, bold ||
| **Regression** ||||
| $\mathbf{x}$ | Training Example feature values (in this lab - Size (1000 sqft))| `x_train` |
| $\mathbf{y}$ | Training Exampletargets (in this lab Price (1000s of dollars))| `y_train`
| $x^{(i)}$, $y^{(i)}$ | $i_{th}$Training Example | `x_i`, `y_i`|
| m | Number of training examples | `m`|
| $w$ |parameter: weight | `w`|
| $b$ |parameter: bias | `b`|
| $f_{w,b}(x^{(i)})$ | The result of the model evaluation at $x^{(i)}$ parameterized by $w,b$: $f_{w,b}(x^{(i)}) = wx^{(i)}+b$ | `f_wb` |

I guess the img tag used in the original markdown is using some library, but I don’t dare to compare the Coursera libraries and my local because there are way too many of difference.

Safari has issues.

See “MLS Resources” at this link:
